Telephone line monitors

Published:2013/7/24 20:45:00 Author:muriel | Keyword: Telephone line monitors | From:SeekIC

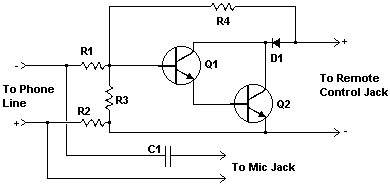

This nifty little circuit lets you record your phone conversations automatically. The device connects to the phone line, your tape recorder's microphone input, and the recorder's remote control jack. It senses the voltage in the phone line and begins recording when the line drops to 5 volts or less. PartsR1 270K 1/4 W ResistorR2 1.5K 1/4 W ResistorR3 68K 1/4 W ResistorR4 33K 1/4 W ResistorC1 0.22uF 150 Volt CapacitorQ1, Q2 2N4954 NPN TransistorD1 1N645 DiodeMISC Wire, Plugs To Match Jacks On Recorder, Board, Phone Plug Notes1. The circuit can be placed anywhere on the phone line, even inside a phone.2. Some countries or states require you to notify anyone you are talking to that the conversation is being recorded. Most recoders do this with a beep-beep. Also, you may have to get permission from the phone company before you connect anything to their lines.
