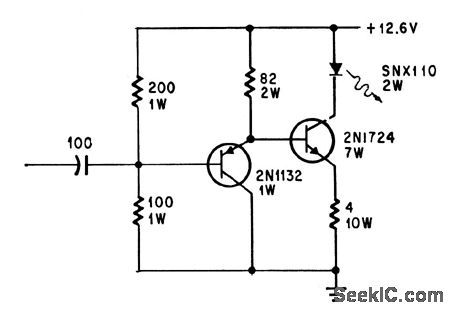

TWO_TRANSISTOR_MODULATOR_FOR_LIGHT_EMITTING_DIODE

Published:2009/7/22 1:06:00 Author:Jessie | From:SeekIC

Linear range of 80% modulation for bandwidth of 30 cps to 250 kc, with only 3% distortion at 1 kc, permits good voice transmission over light beams generated by SNX110 Iight-emining diode.-E. L. Bonin, Drivers for Optical Diodes, Electronics, 37:22, p 77-82.
