TWO_TRANSISTOR_CURRENT_MODE_SWITCH

Published:2009/7/14 4:17:00 Author:May | From:SeekIC

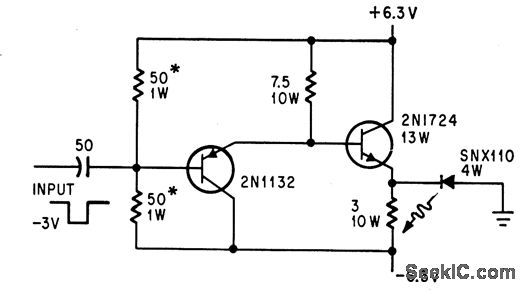

With two separate voltage supplies, input pulse triggers transistors to give 2-amp pulses for driving light-emitting diode.-F, .Bonin, Drivers for Optical Diodes, Electronics, 37:22, p 77-82.
