TV_GAME_CONTROL

Published:2009/7/13 3:15:00 Author:May | From:SeekIC

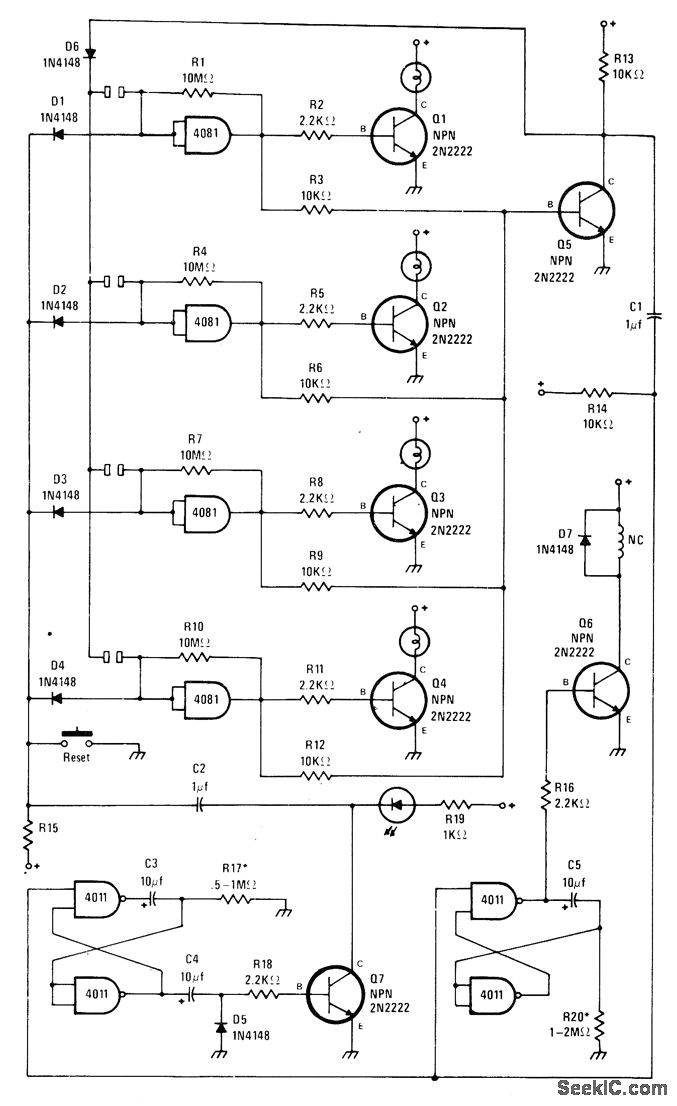

Developed for use in game in which first person to recognize musical tune places finger on touch plate to energize his lamp. Action stops cassette player andlocks out touch plates of other players. After 5-s delay, lockout is disabled so different player can have try at correct answer if first is wrong. After additional 5-s delay, relay is deenergized and music resumes. Additional reset switch is provided to reactivate all touch plates independently of delay. Supply is 12 V, and lamps are 12 V.-J. Sandler, Name That Tune, Modern Electronics, Dec. 1978, p 66 and 69-70.
