TTL server control circuit

Published:2011/6/19 19:13:00 Author:TaoXi | Keyword: TTL, server, control circuit | From:SeekIC

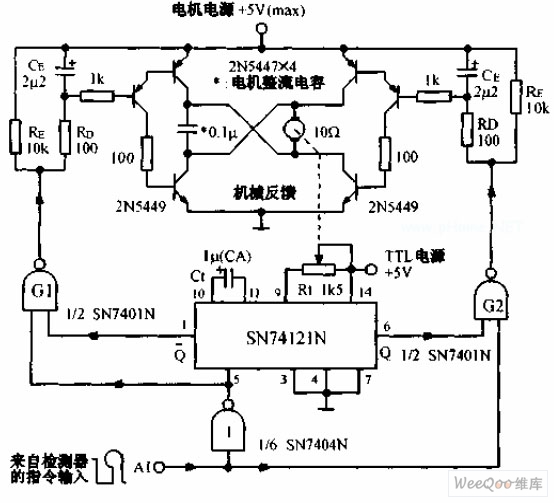

The TTL server control circuit can be used in the 9-channel control system. This system has 9 same servos, the decoder of the data transmission line (DTL) receiving port sends the signal to the servo, the command pulse controls the rotation direction and the rotation duration of the electromotor.
