TRIAC_LAMP_DIMMER_CIRCUIT

Published:2009/6/23 1:58:00 Author:May | From:SeekIC

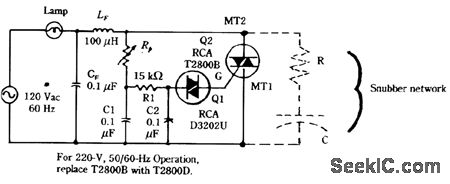

The brightness of a lamp or lamps can be varied with this circuit. The snubber circuit values are typically 0.1 μF and 100-Ω.R8, is typically 25 to 100 kQ.
