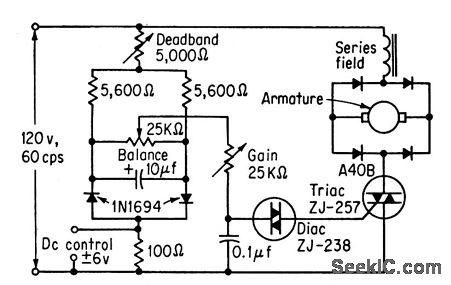

TRIAC_DIAC_REVERSING_SERVO_CONTROL

Published:2009/7/22 2:02:00 Author:Jessie | From:SeekIC

Varies speed and direction of 5-amp reversible series ac motor in accordance with d-c control signal. Polarity of control signal determines direction of rotation. Gain potentiometer adjusts slope of speed versus control voltage curve.-M. P. Southworth, Bidirectional Static Switch Simplifies Ac Control, Control Engineering, March 1964, p 75-76.
