TRANSISTOR_PROTECTION_IN_MONO

Published:2009/7/21 10:27:00 Author:Jessie | From:SeekIC

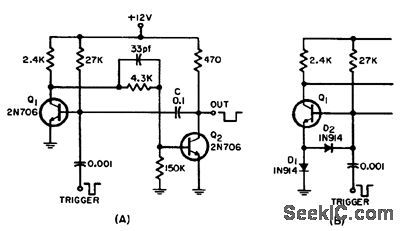

In typical transistor monostable mvbr (A), transient base-to-emitter voltage caused by discharging C often surpasses transistor rating. Two diodes alleviate trouble (B). Circuit produces width of 200 microsec.-J. S. Mikuckis, Base-Emitter Protection in Monostable Multivibrators, EEE, 12:9, p 63.
