TONE_CONTROL_FOR_OPAMP

Published:2009/6/29 23:55:00 Author:May | From:SeekIC

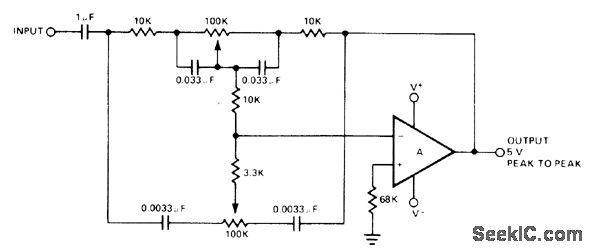

Provides up to 20 dB of bass boost or cut at 20 Hz and up to 19dB of treble boost or cut at 20 kHz. Turnover fre-quency is 1 kHz. Opamp can be 531 or 301.- Signetics Analog Data Manual, Sunnyvale, CA, 1977, p 638-640.
