THYRATRON_AFC_FOR_AIRBORNE_RADAR_1

Published:2009/7/15 4:10:00 Author:Jessie | From:SeekIC

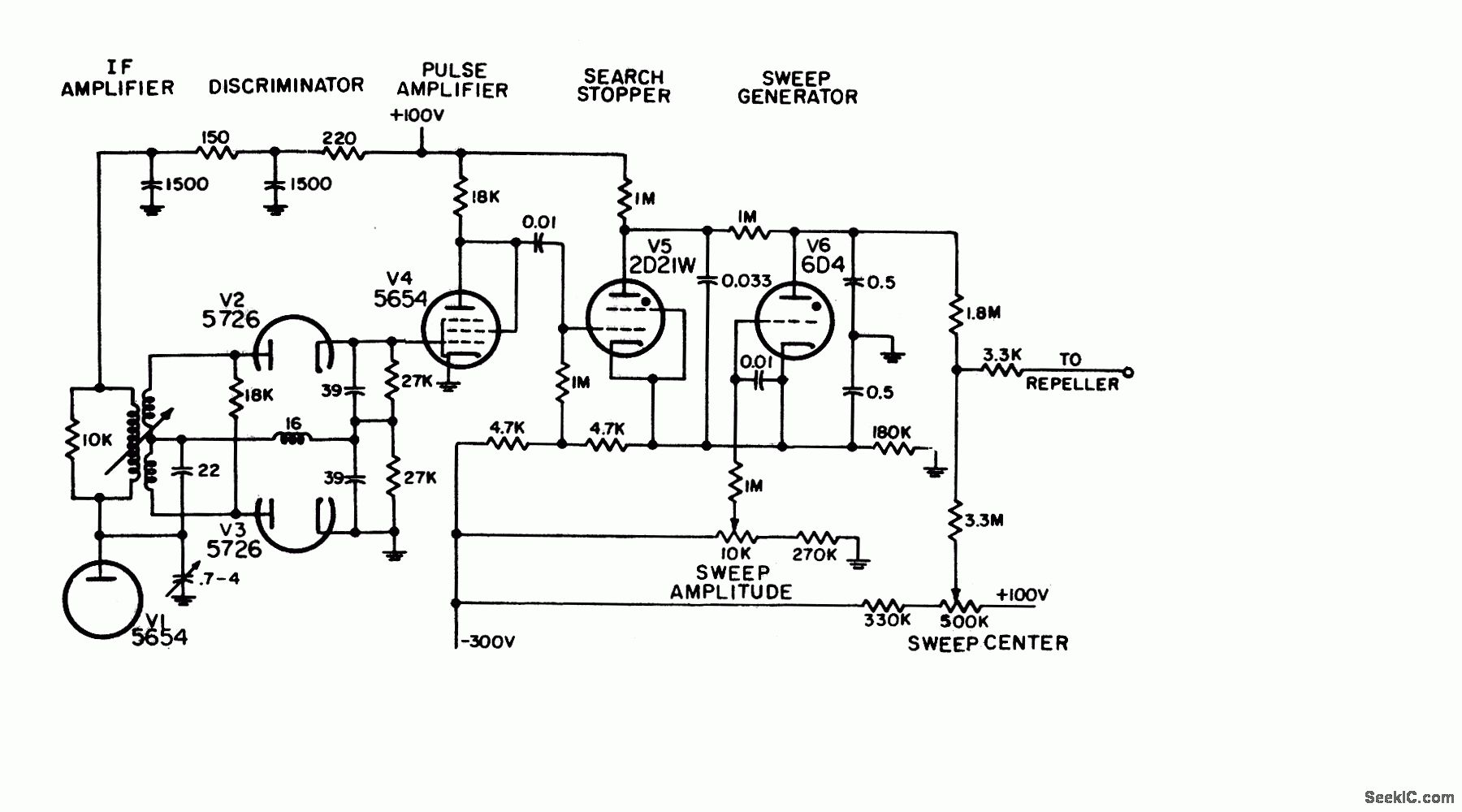

Uses Foster-Seeley discriminator to produce aeries of pulses varying from zero at crossover to maximum of 0.5 to 2 v at frequency of maximum response. Polarity may be either positive or negative, depending on whether incoming signal is above or below crossover frequency, and can be changed by reversing the diodes. Two thyratrons generate required control voltage for repeller of klystron.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N 13-4.
