THREE_SPEED_BLENDER_CONTROL

Published:2009/7/22 2:05:00 Author:Jessie | From:SeekIC

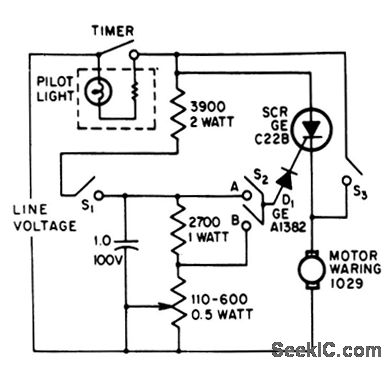

Single scr safely handles 7.5-amp current of 1/2-hp motor. Feedback is used to change firing angle of scr as load increases, to maintain constant blending speed.-J. Eimbinder, SCRs In The Consumer Market, FEE, 14:8, p 100-103.
