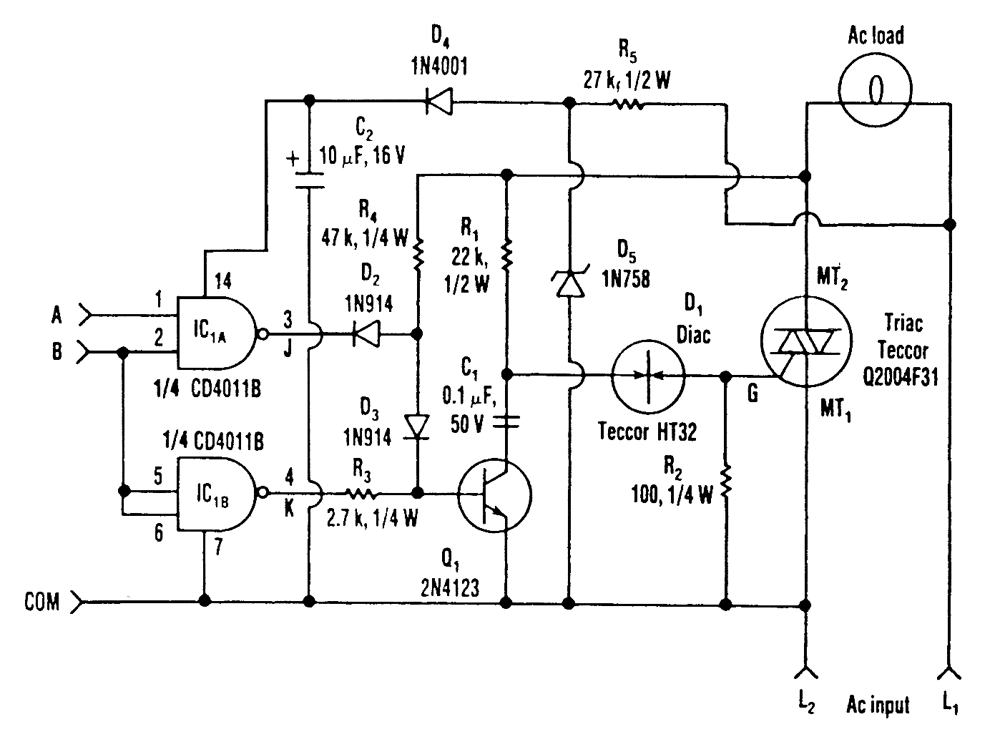

THREE_POWER_LEVEL_TRIAC_CONTROLLER

Published:2009/6/17 2:04:00 Author:May | From:SeekIC

Three power levels are supplied by the two logic inputs of this enhanced circuit. R5, D4, D5, and C2 form a power supply for the logic IC. They can be omitted if another source of low voltage is available.
