Thermocouple_temperature_control

Published:2009/7/21 23:36:00 Author:Jessie | From:SeekIC

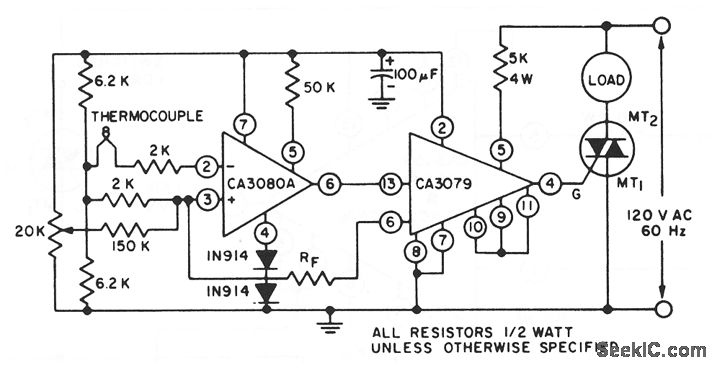

This circuit shows a CA3080A OTA (chapter 11) and a CA3079 zero-voltage switch that are connected to form a thermocouple temperature control, where the CA3079 functions as an output amplifier.
