TEMPERATURE_SENSING_TD_OSCILLATOR

Published:2009/7/21 21:46:00 Author:Jessie | From:SeekIC

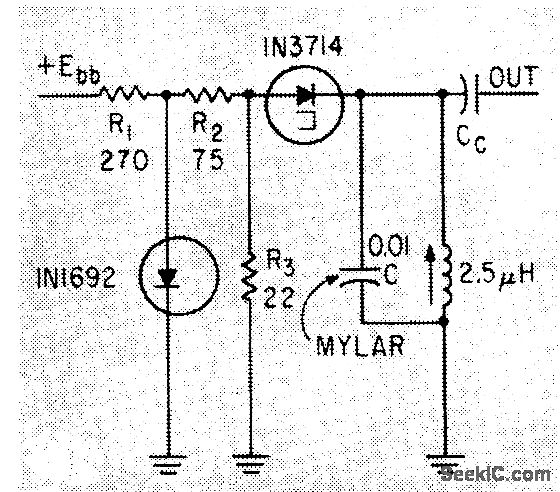

Mylar capacitor with known and reproducible temperature characteristics makes oscillator frequency vary with temperature, Diode bias regulator circuit is used.-E. Gottlieb and J. Giorgis, Tunnel Diodes-Using Them as Sinusoidal Generators, Electronics, 36:24, p 36-42.
