TEMPERATURE_COMPENSATING_THERMOCOUPLE_BRIDGE

Published:2009/7/21 20:41:00 Author:Jessie | From:SeekIC

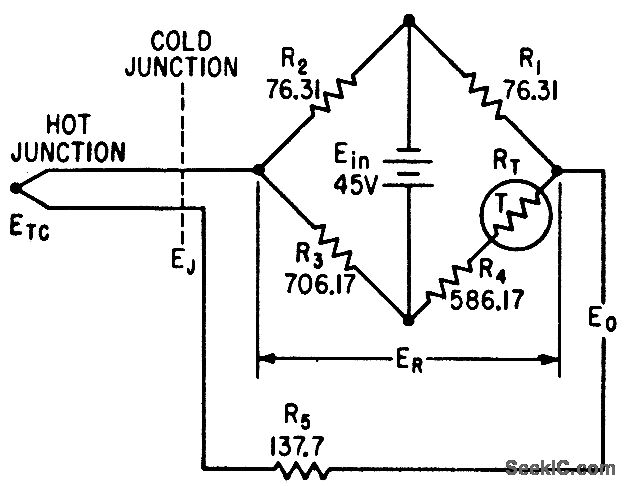

Temperature-sensitive resistor RT in bridge provides voltage to compensate variations in cold-junction voltage during missile light testing.-J. B. Brownwood, Thermocouple Compensating Circuit Design, Electronics, 35:1, p 98-100.
