TEMPERATURE_COMPENSATED_CONSTANT_CURRENT_GENERATOR

Published:2009/7/14 5:26:00 Author:May | From:SeekIC

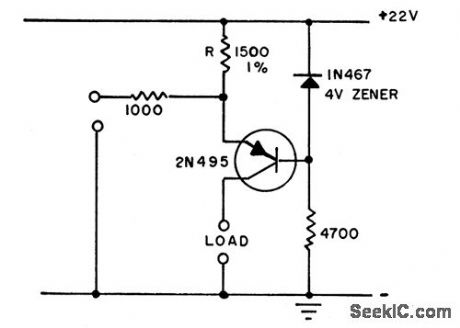

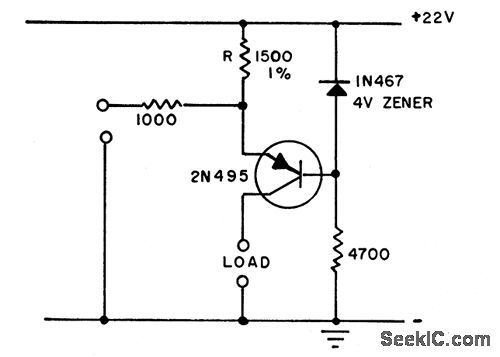

Reverse voltage characterisitic of zener, in conjunction with baseemitter characteristic of transistor, stabilizes collector current by maintaining constant voltage across R from-55 to+25℃.-Temperature-Compensated constant Current Generator. Electronic Circuit Design Handbook, Mactier Pub.Corp.N.Y.1965,P169.
