TC9316F-15 movement logic control integrated circuit diagram

Published:2011/5/4 3:36:00 Author:Ecco | Keyword: movement , logic control, integrated circuit | From:SeekIC

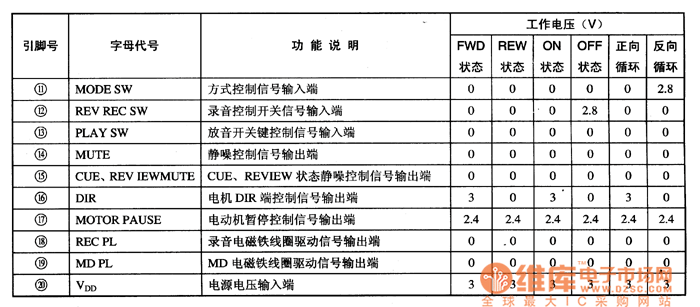

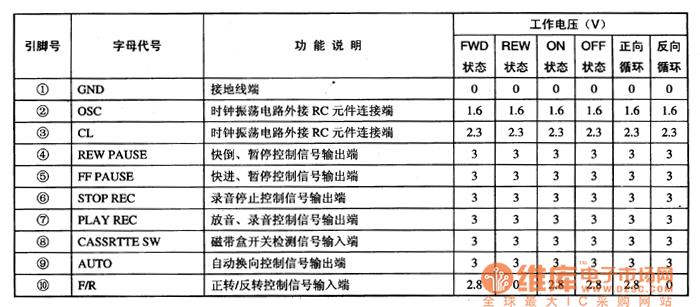

TC9316F-015 is a movement logic control integrated circuit produced by Toshiba, it is widely used in Epworth, Toshiba, Sanyo and domestic players, video machines. TC9316F-015 uses 20 feet package in double row, the pin functions and data are listed in Table 1. Table 1 shows TC9316F-015 pin functions and data.
