TC9308AF-029--the system control microcomputer integrated circuit

Published:2011/6/10 0:57:00 Author:qqtang | Keyword: system control, integrated circuit | From:SeekIC

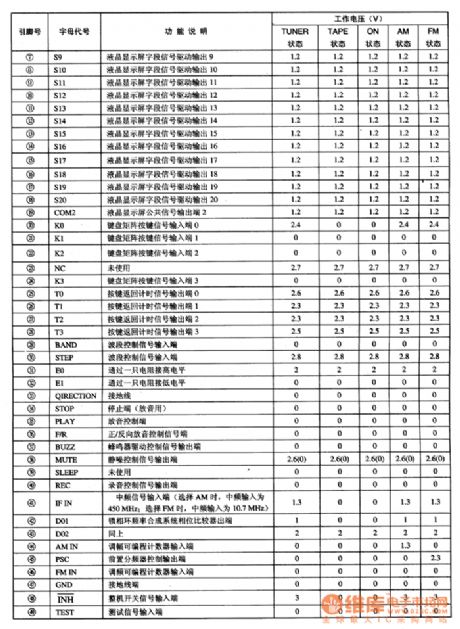

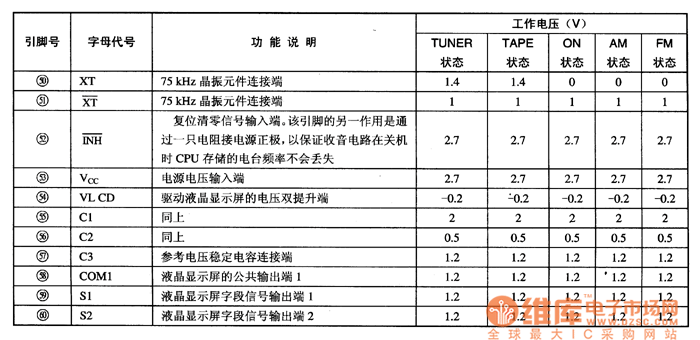

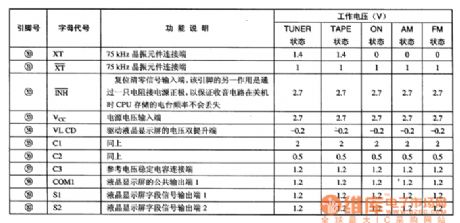

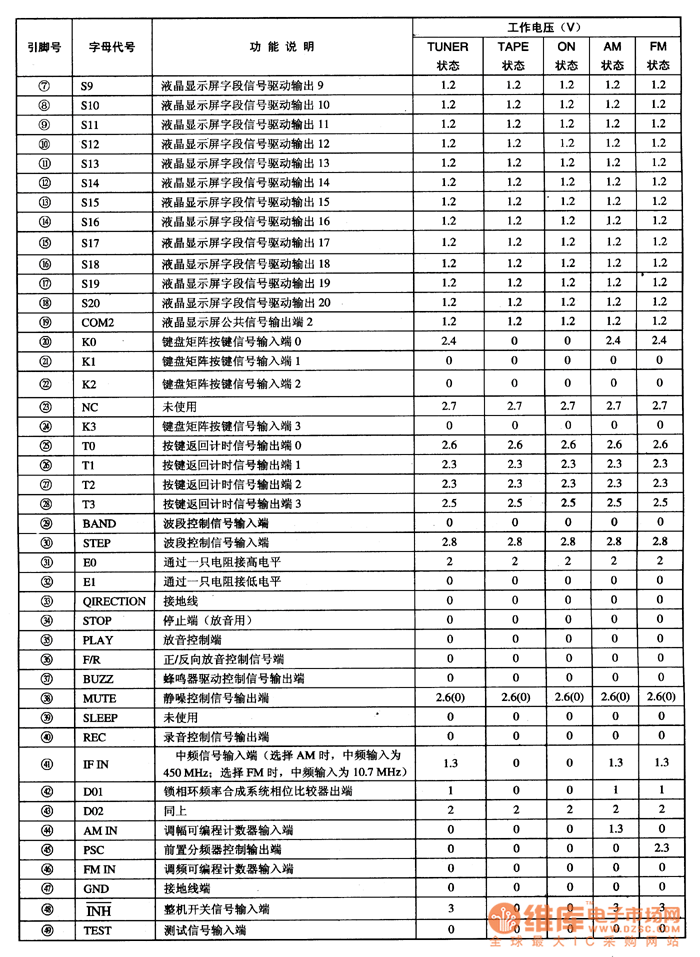

TC9308AF-029 is a system control microcomputer integrated circuit produced by Toshiba, which is widely used in walkmen and function control, such as Aiwa, Sanyo and Toshiba, etc.1.function featuresTC9308AF-029 contains the CPU, clock oscillating circuit, key pulse counter, preset frequency distributor, reset control circuit, wave control circuit, reproduce control circuit, recording control circuit, system and LCD display decoding drive circuit, etc.2.pin functions and data
