TC9305-035 logic control system IC circuit

Published:2011/4/26 21:47:00 Author:TaoXi | Keyword: logic control system | From:SeekIC

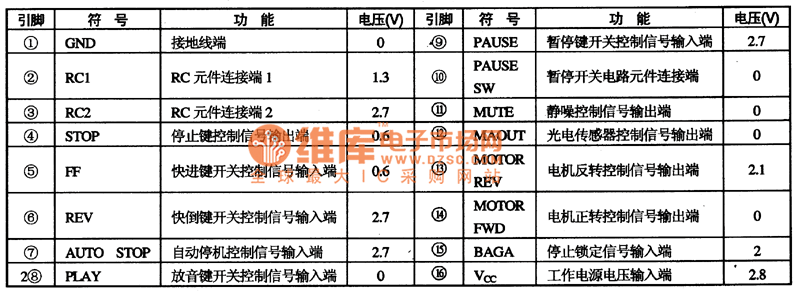

The TC9305-035 is designed as one kind of logic control system IC which is produced by the TOSHIBA company, this device can be used in wide range of applications such as the low voltage walkman, repeater. This device transforms the mechanical switch control signal to the microcomputer circuit. 1. Features The TC9305-035 integrated circuit is composed of the switch control signal decoding circuit, the squelch control circuit, the motor reverse control circuit.etc. 2. Pin functions and data TC9305-035 integrated circuit is in the 16-pin dual in-style package, the pin functions and data is as shown in table 1. Table 1. The pin functions and data of the TC9305-035
