TC9020P-011--The letter display generating integrated circuit

Published:2011/6/7 10:21:00 Author:qqtang | Keyword: letter display generating, integrated circuit | From:SeekIC

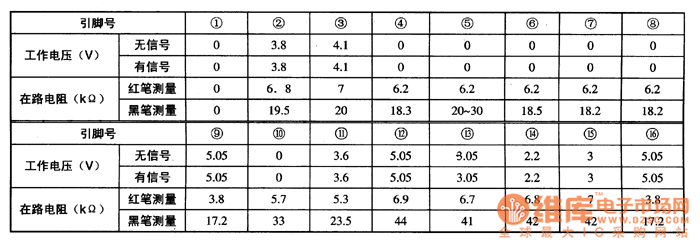

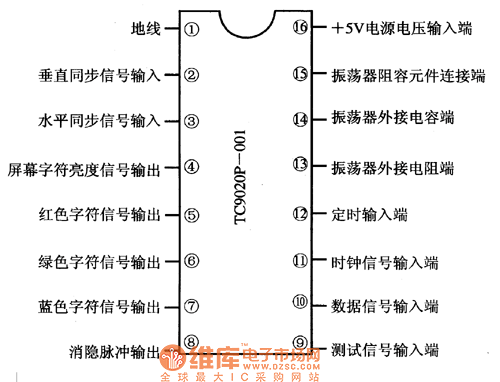

TC9020P-011 is a letter display generating integrated circuit, which is widely used in many makes of local and imported color TV.1.function featuresTC9020P-011 contains the letter signal generating circuit, clock oscillating circuit, data input connector circuit, horizontal/vertical field locating and black signal process circuit, etc. 2.pin functions and dataTC9020P-011 is in 16-pin dual in-line package, whose pin functions are in Figure 1, and the working parameters are listed in Table 1.Figure 1. pins of TC9020P-011
