TC9020P-003--the integrated circuit of letter display generators

Published:2011/6/7 10:45:00 Author:qqtang | Keyword: integrated circuit, letter display generator | From:SeekIC

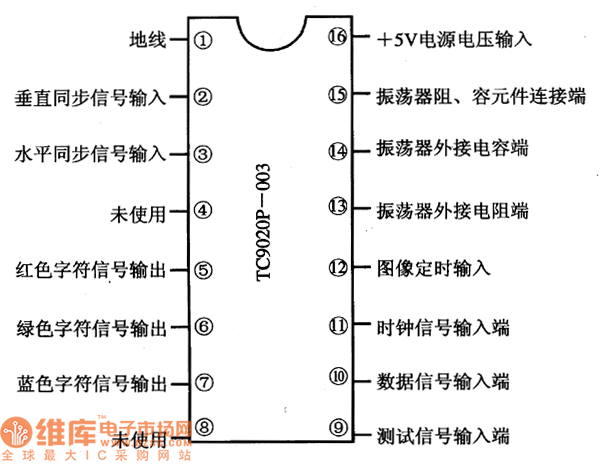

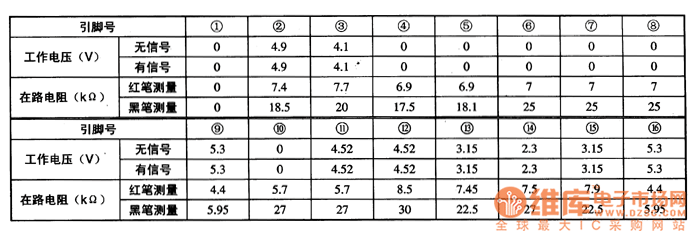

TC9020P-003 is an integrated circuit of letter display generator produced by Toshiba, which is widely used in many makes of local and imported color TV.1. Function features TC9020P-003 includes clock oscillator circuit, data input connector circuit, horizontal/vertical field locating and blank signal process circuit, etc.2.pin functions and dataTC9020P-003 is in 16-pin dual in-line package, whose pin functions are shown in Figure 1, and its parameters are listed in Table 1.Figure 1. The pin functions of TC9020P-003
