TOUCH_ON_OFF_ELECTRONIC_SWITCH

Published:2009/7/8 3:45:00 Author:May | From:SeekIC

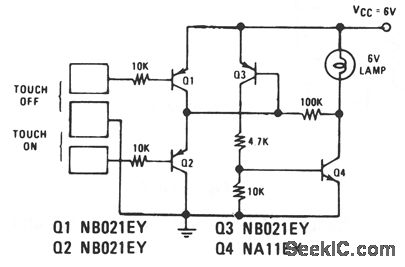

Transistors Q1 and Q2 control latch Q3 and Q4 to switch on the lamp. A high resistance from touching the electrode biases Q1 or Q2 on, setting or resetting the latch.
