SIMPLE_TOUCH_SWITCH

Published:2009/6/24 21:05:00 Author:Jessie | From:SeekIC

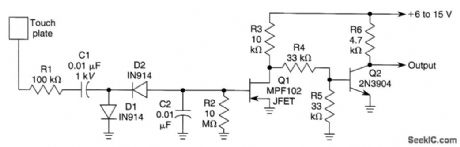

Q2 is held cut off since Q1 normally is conducting. When the touch plate is contacted by a large object (human body, etc.), stray 60-Hz pickup is rectified by D1 and D2, and produces a negative voltage across R2-C2 and the gate of Q1. Q1 cuts off, causes Q2 to conduct, and the output goes low.
