SIMPLE_SWITCH_DEBOUNCER

Published:2009/6/24 3:23:00 Author:Jessie | From:SeekIC

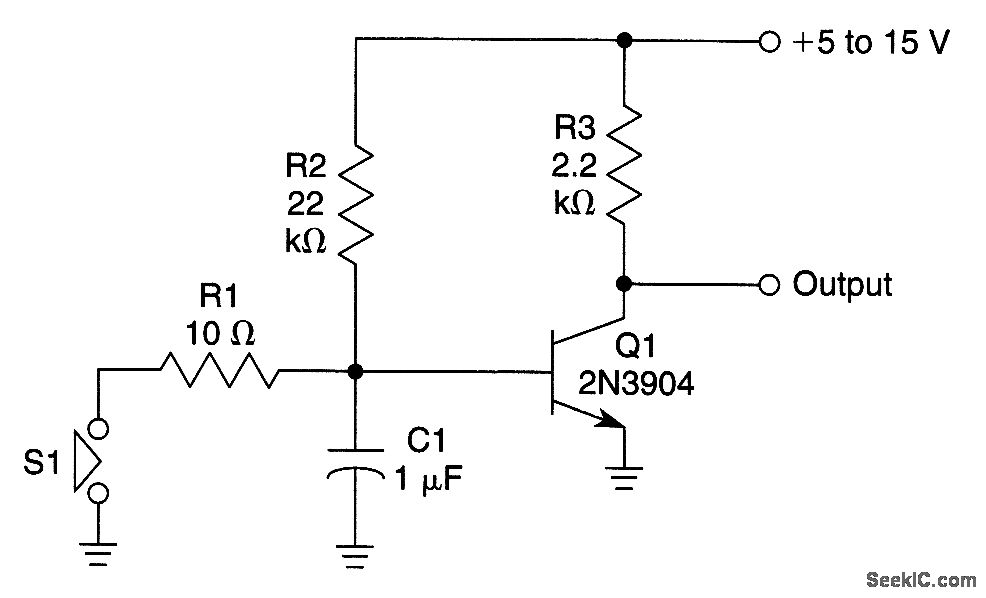

Pressing S1 discharges C1 through R1, causing Q1 to cut off, forcing the output high. Once C1 is discharged below the VBE (ON) of Q1, switch bounce will have no effect on the output.
