SIGNAL_CONTROLLED_SWITCH

Published:2009/7/14 1:04:00 Author:May | From:SeekIC

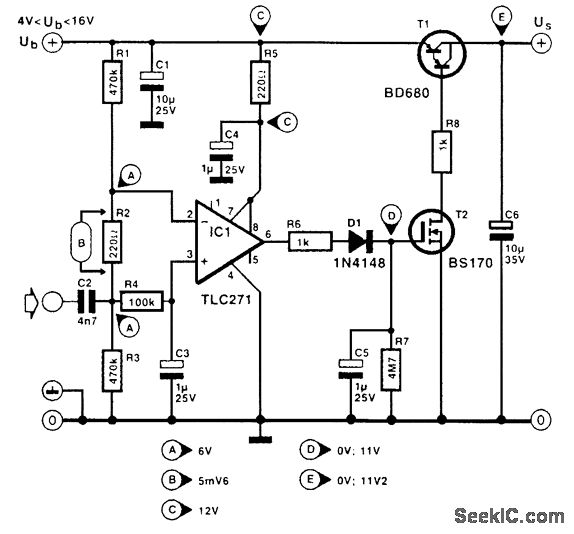

This signal-controlled switch actuates or deactuates AF equipment, including preamplifiers, power amplifiers, and filters. It is particularly useful for battery-operated equipment because, owing to the low current drain of 12 to 14μA, there is no need to switch the AF equipment off. When the switch has not detected any AF signal for 10 seconds, it switches off the supply to the equipment.
