RESISTOR_PIN_DIODE_SWITCH

Published:2009/6/24 3:13:00 Author:Jessie | From:SeekIC

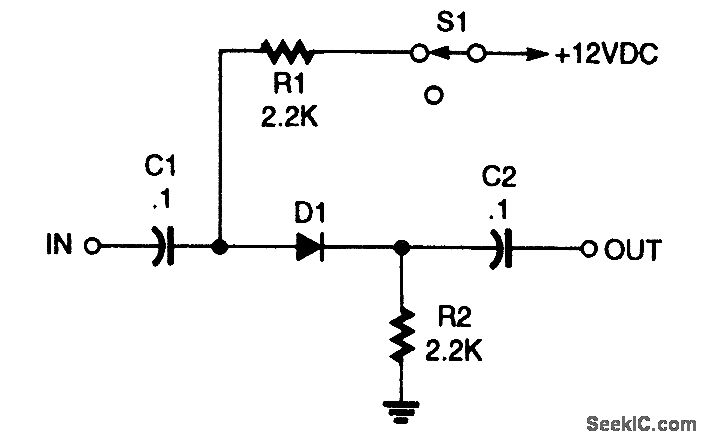

This circuit uses resistors instead of RE chokes to keep costs low. The values of R1 and R2 should be no lower than about 1 kΩ to minimize loss.
