PIN_DIODE_SWITCH

Published:2009/6/24 3:16:00 Author:Jessie | From:SeekIC

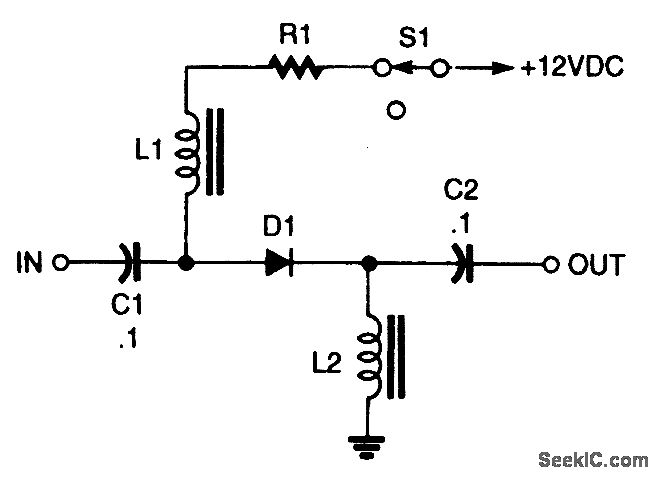

This PIN diode switch uses RF chokes and a single diode。R1 is typically 470Ω to 2.2kΩ
