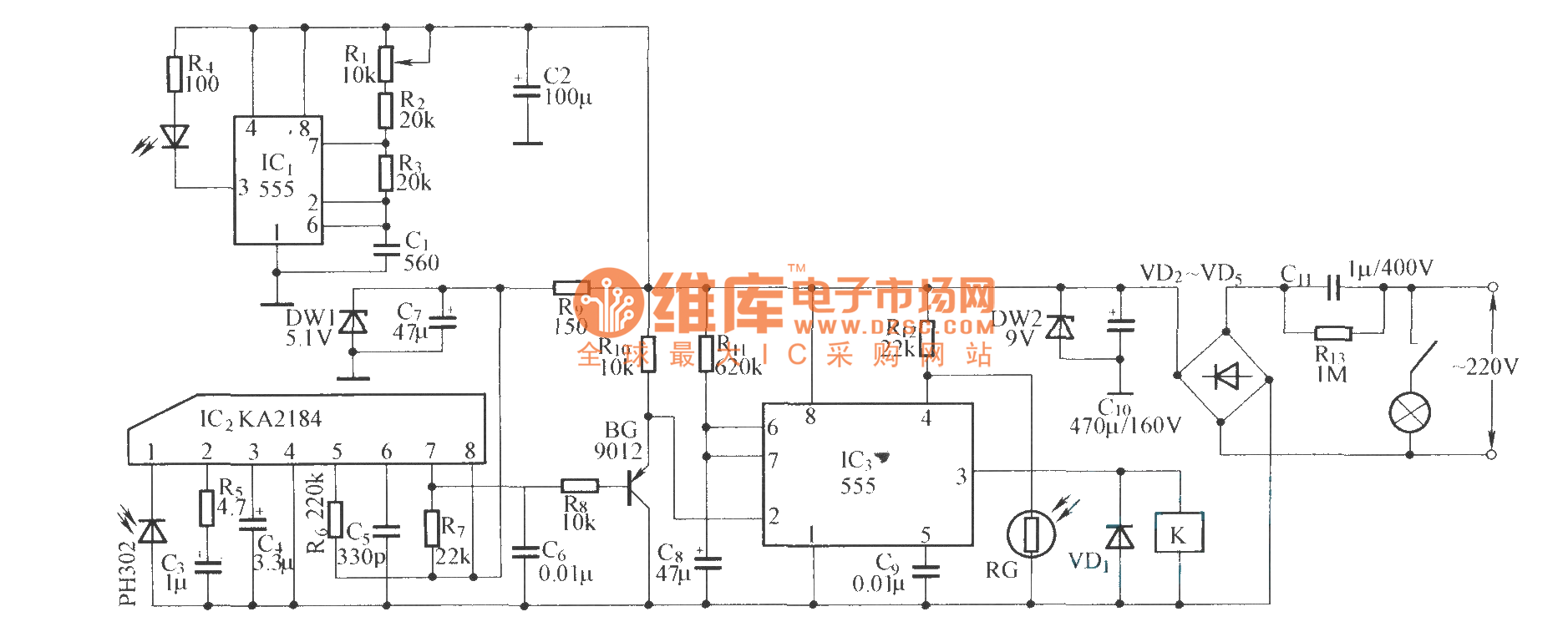

Infrared delay light switch circuit diagram

Published:2011/9/27 1:33:00 Author:Rebekka | Keyword: Infrared delay light switch | From:SeekIC

KA2184 infrared receiver integrated circuit ismade in the Korean. The performance, parameters and pin functions are identical with the CX20106.They can be directly used interchangeably. Since the circuit uses infrared reflective circuit structure. So infrared transmitter and receiver need to be installed in the same direction and in the same plane. It makes the transmitter and the receiver become integrated structure, and they use the same power supply. This work style also happens to meet the circuit standard. Such as long-term, short work of working state. In this circuit, it uses multivibrator composed of the NE555 as infrared emission tube drive circuit.
