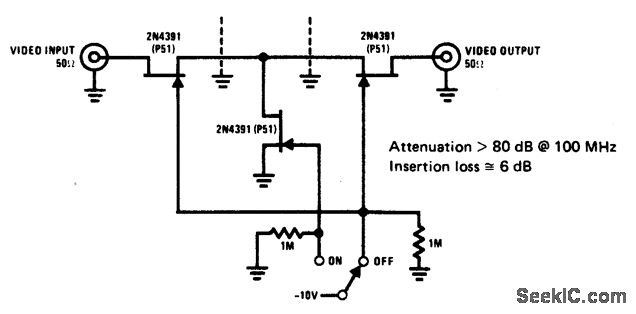

HIGH_FREQUENCY_SWITCH

Published:2009/6/25 21:53:00 Author:Jessie | From:SeekIC

The 2N4391 provides a low ON resistance of 30 ohm and a high OFF impedance (＜0.2 pF) when off. With proper layout and an ideal switch, the performance stated above can be readily achieved.
