HEXFET_SWITCH_CIRCUITS

Published:2009/6/24 3:21:00 Author:May | From:SeekIC

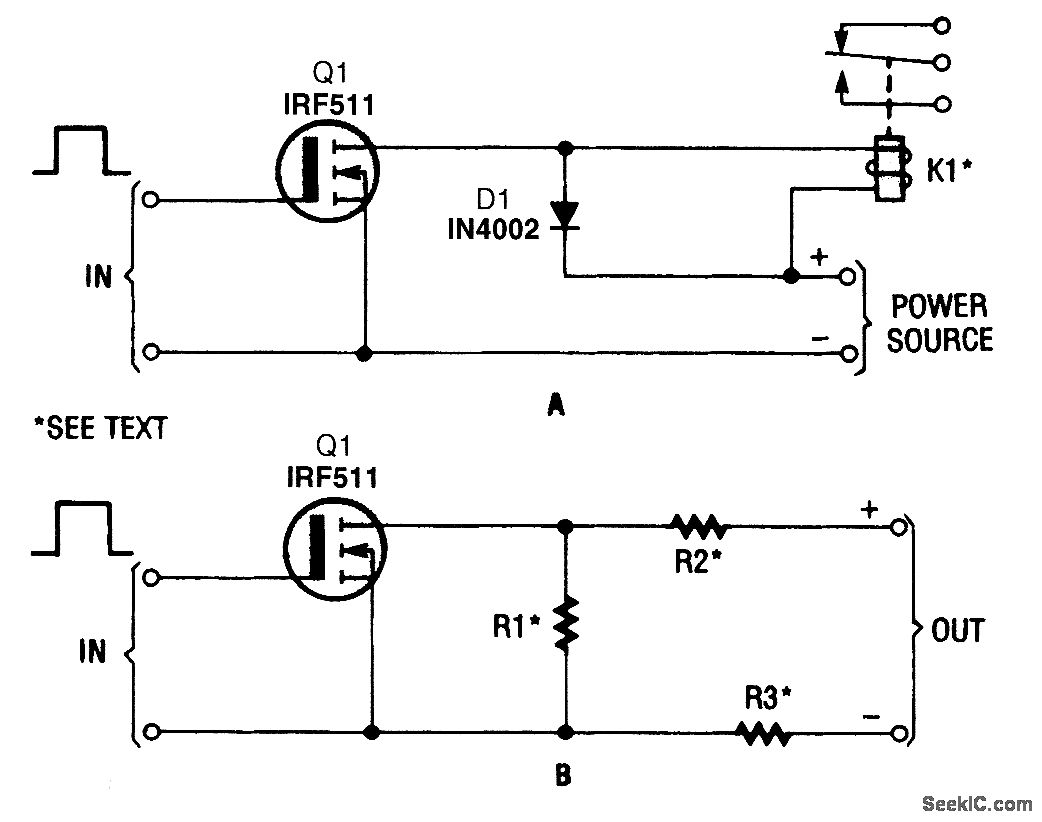

The HEXFET can switch dc power to relays （as shown in A），motors，lamps，and numerous otherdevices That arrangement can even be used to switch resistors in and out ofa circuit，as shown in Fig．88-18B R1，R2，and R3 are possible load resistors and representload configurations that can be used
