GENERAL_PURPOSE_VIDEO_SWITCH

Published:2009/7/15 5:12:00 Author:Jessie | From:SeekIC

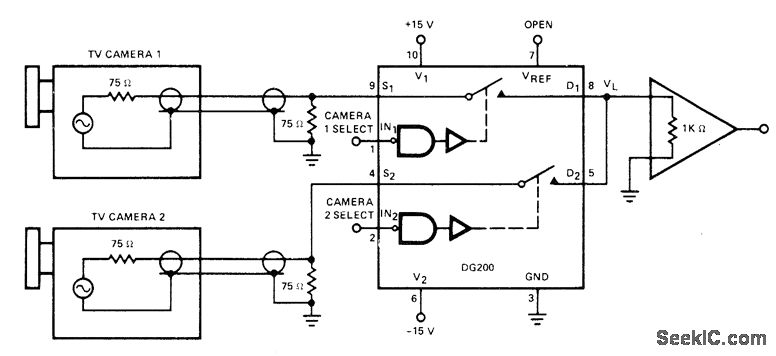

When used for switching TV cameras.DG200 CMOS analog switch provides 45-dB isolation at 10 MHz between on and off cameras，Insertion loss of switches 0.5 dB, For greater isolation、use additional analog switch in each camera line．－Analog Switches and Their Applications ” Siliconix. Santa Clara,CA，1976.p 7-70.
