ELECTRONIC_SAFETY_SWITCH

Published:2009/6/19 2:12:00 Author:May | From:SeekIC

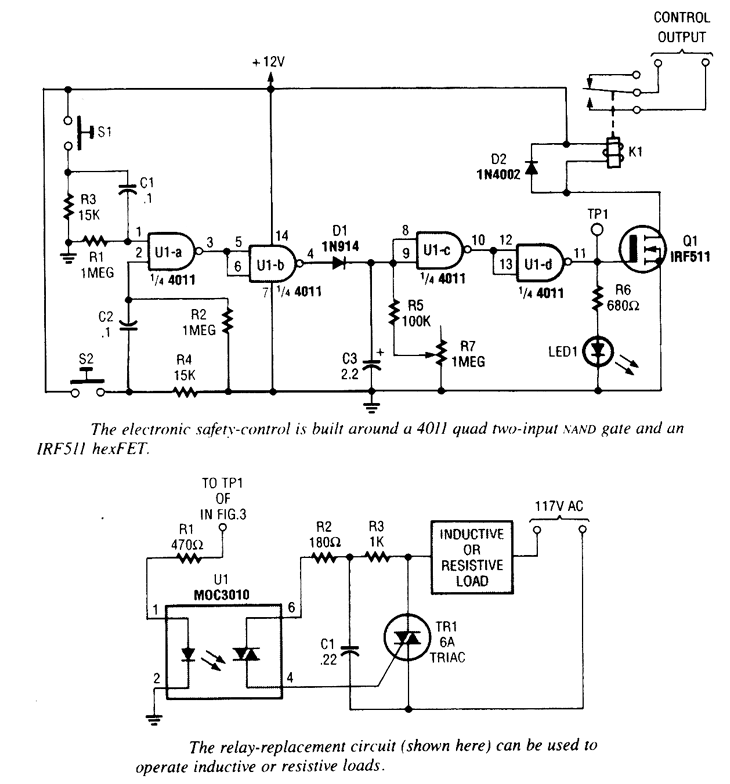

S1 and S2 must be depressed within 200 ms of each other to activate K1. The hold time is ad-justable via R7. S1 and S2 overlap time can be changed by changing C1 and C2 or R1 and R2.
