DIODE_RF_SWITCH

Published:2009/7/10 20:47:00 Author:May | From:SeekIC

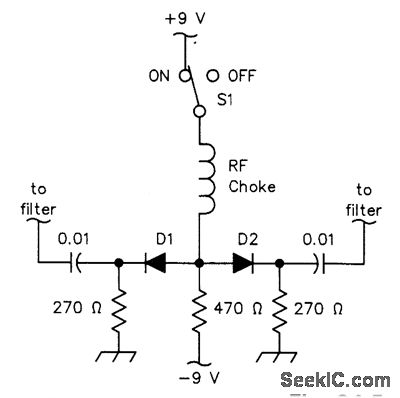

D1 and D2 can be IN914B－ or HP2800-senesdiodes(for UHF)．The loss is over 60 dB h the OFF state，and less than 3 dB at 3.5 to 30 MHz(using common IN914B diodes)．
