DIGITAL_TOUCH_ON_OFF_SWITCH

Published:2009/7/8 3:41:00 Author:May | From:SeekIC

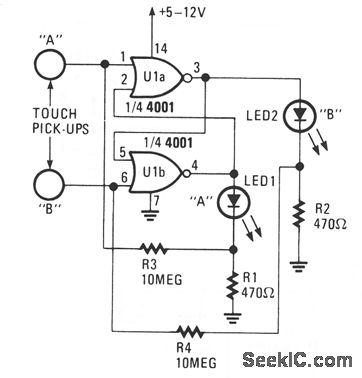

Only one LED can be on when the circuit is at rest. Which LED is illuminated is determined by the touch pick-up that last had human contact. Pickup terminal A controls the on condition of LED1, and terminal B controls the on condition of LED2. A 4001 quad two-input NOR gate is connected in an anti-bounce latching circuit that is activated by touching a pickup.
