DIFFERENTIAL_ANALOG_SWITCH

Published:2009/6/25 21:52:00 Author:Jessie | From:SeekIC

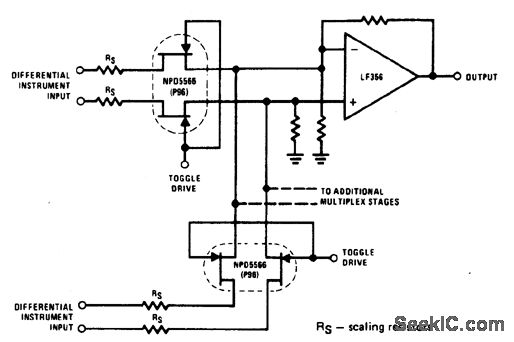

The NPD5566 monolithic dual is used in a differential multiplex application where Rd,coN) should be closely matched. Since Rd,coN) for the monolithic dual tracks at better than ±1% over wide temperature ranges (- 25℃ to +125℃), this makes it an unusual but ideal choice for an accurate multiplexer. This close tracking greatly reduces errors due to common-mode signals.
