Subtraction Circuit

Published:2011/7/11 2:44:00 Author:Joyce | Keyword: Subtraction | From:SeekIC

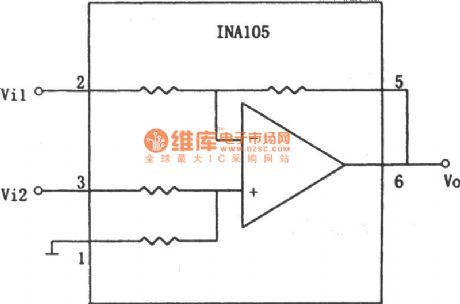

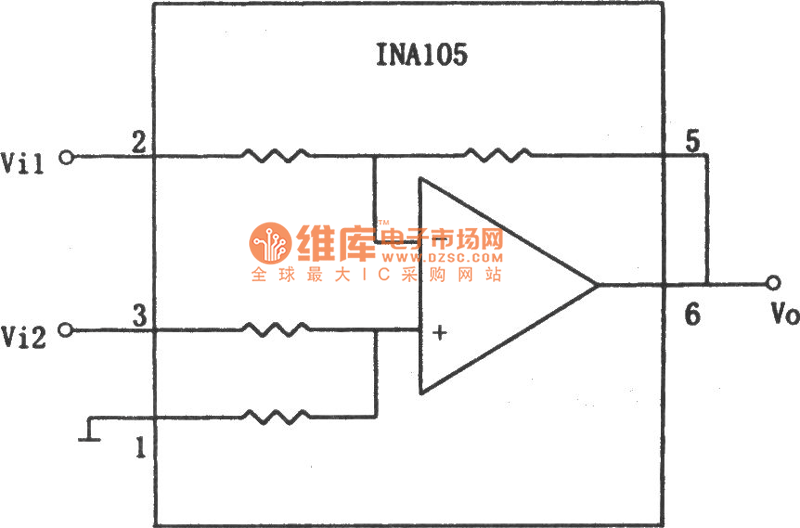

As shown in the figure is a subtraction circuit (1)composed of other components.The relationship of input and output of the circuit is :Vo=10(Vi2-Vi1)
