Special cultivation temperature control and wave-sound circuit

Published:2011/9/4 22:32:00 Author:TaoXi | Keyword: Special cultivation, temperature control, wave-sound circuit | From:SeekIC

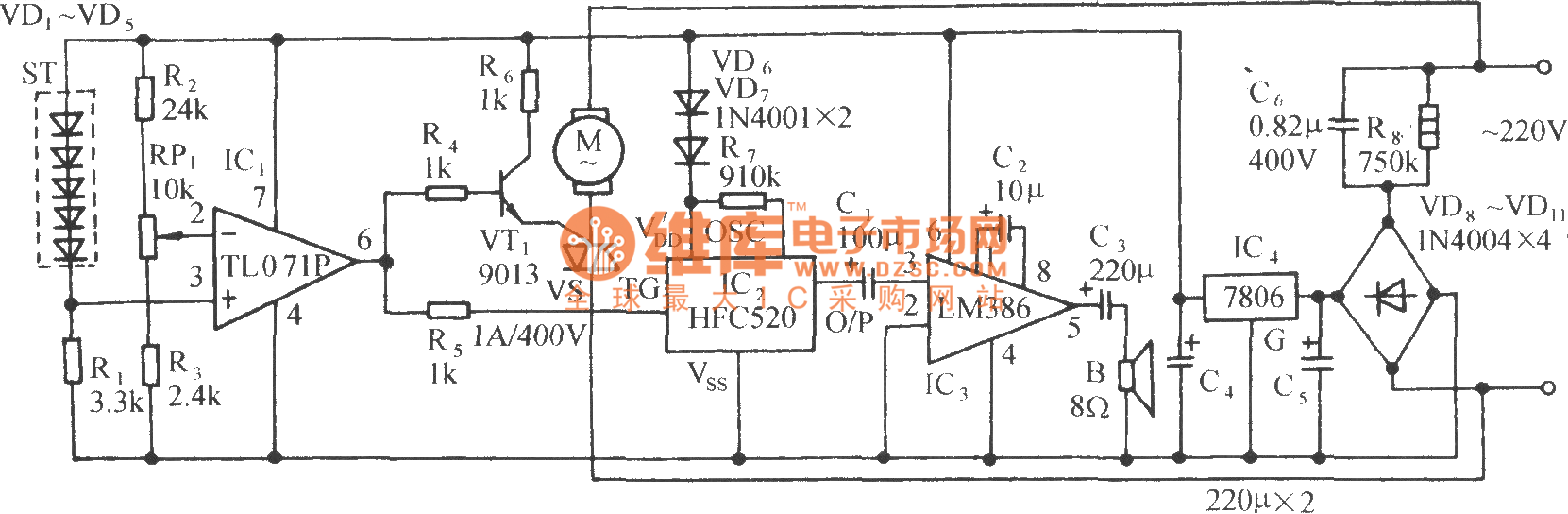

As the figure shows, it is composed of the temperature sensing devices, the comparison circuit, the silicon controlled temperature control circuit, the wave- sound circuit and the AC step-down rectifier circuit. This circuit is simple, practical and it has the wide temperature range and high control precision.
