Sound control electronic corsage circuit

Published:2011/4/6 4:14:00 Author:Nicole | Keyword: sound control, electronic corsage | From:SeekIC

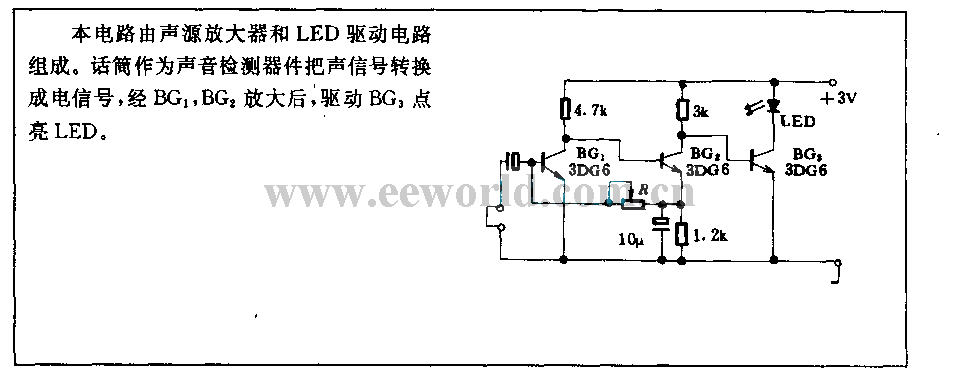

This circuit is composed of noise source amplifier and LED drive circuit. As sound detection devices, microphone changes acoustic signal into electrical signal, after BG1, BG2 amplification, drive BG3 lights up LED.
