Single chip hand washing controller circuit

Published:2011/5/16 19:37:00 Author:Christina | Keyword: Single chip, hand washing, controller | From:SeekIC

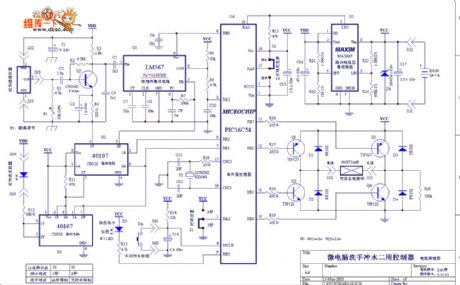

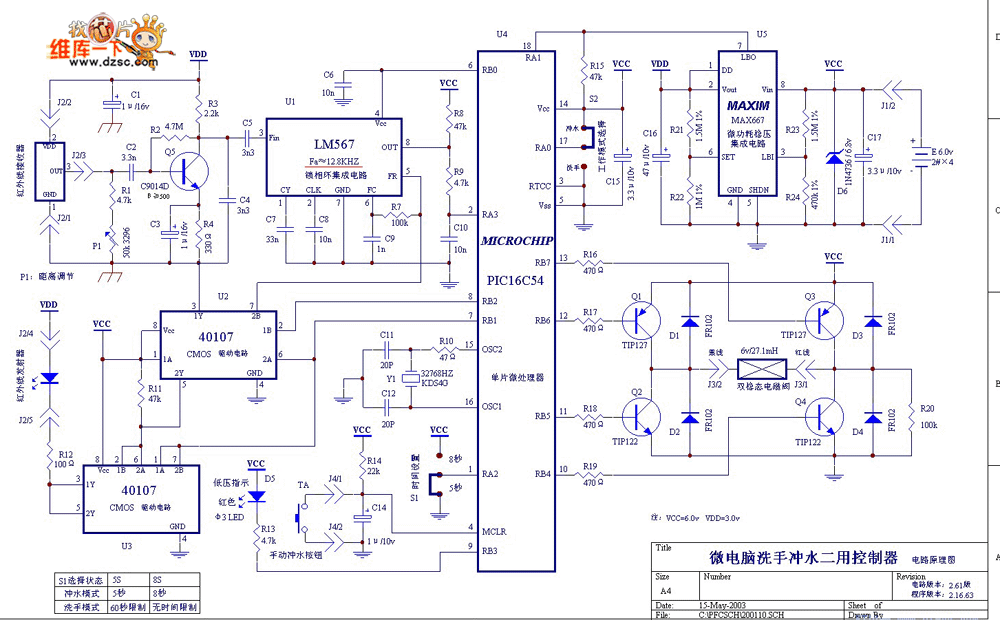

The sngle chip hand washing controller circuit is as shown:
