Simple servo motor drive control circuit

Published:2011/6/23 2:07:00 Author:TaoXi | Keyword: Simple, servo motor, drive control | From:SeekIC

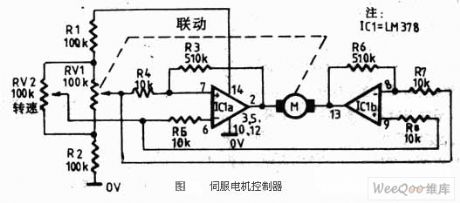

The servo motor is designed as one kind of traditional motor. It is the execution component of the automatic device. The most important feature of the servo motor is the controllable feature. When there is the control signal the servo motor turns, and the speed is proportional to the control voltage. If you remove the control voltage, the servo motor will immediately stop turning. The servo motor can be used in wide range of applications such as all of the automatic control system and the household electrical appliances (CD players, video players). Figure: The simple servo motor drive control circuit
