Simple light-operated street lamp circuit diagram(5)

Published:2011/6/27 22:08:00 Author:Ecco | Keyword: Simple , light-operated , street lamp | From:SeekIC

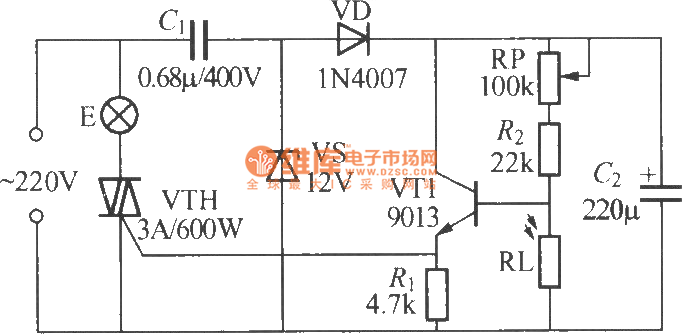

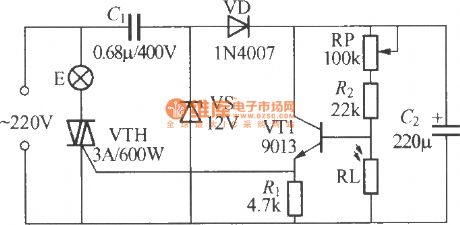

The chart shows the simple light-operated street lamp circuit which is made by two-way thyristor, and it consists of three major componentsof thyristor major loop, light control switches and power circuit.
