Simple light-operated street lamp circuit diagram(2)

Published:2011/6/27 21:24:00 Author:Ecco | Keyword: Simple, light-operated , street lamp | From:SeekIC

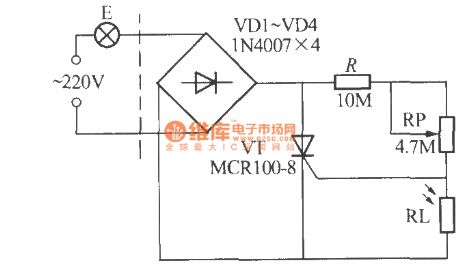

The chart shows the simple light-operated street lamp circuit, which is simple, easy to use. The current flowing lamp is the full-wave AC current, so the lamp light is in a normal state. Its brightness is much more than half-voltage power supply, and electronic circuit and light bulbs use two-wire connection to simplify installation.
