Simple Motorcycle Alarm

Published:2012/11/19 1:29:00 Author:muriel | Keyword: Simple, Motorcycle Alarm | From:SeekIC

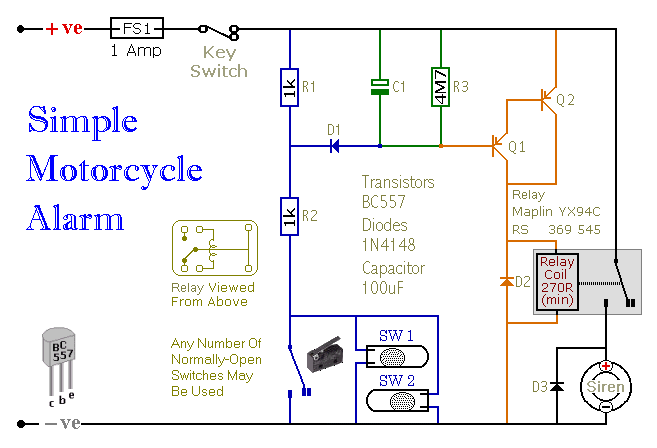

This is a simple - easy to build - transistor based motorcycle alarm. It's designed to work at 12-volts. But - if you change the relay for one with a 6-volt coil - it'll protect your Classic Bike . The standby current is virtually zero - so it won't drain your battery.
