Sharp C-1460 protection circuit

Published:2011/5/26 7:58:00 Author:Christina | Keyword: Sharp, protection circuit | From:SeekIC

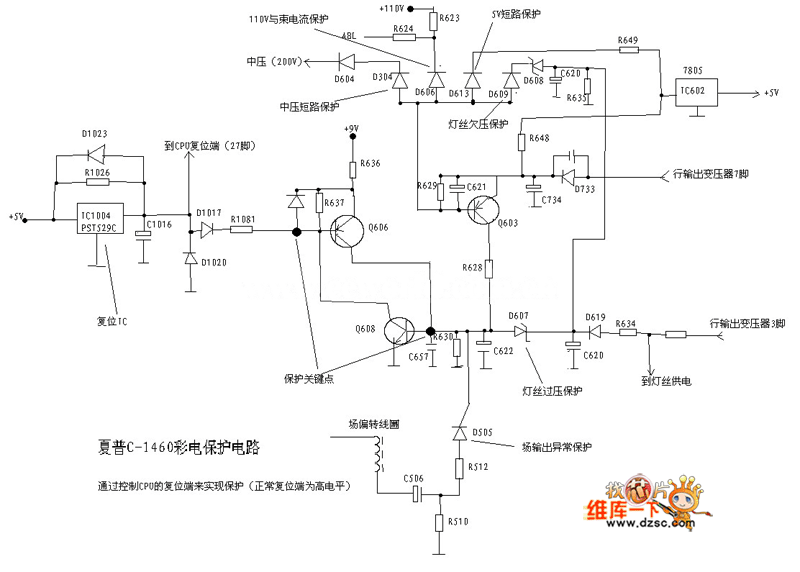

The Sharp C-1460 protection circuit is as shown:
