SWITCH_DEBOUNCERS

Published:2009/6/24 3:22:00 Author:Jessie | From:SeekIC

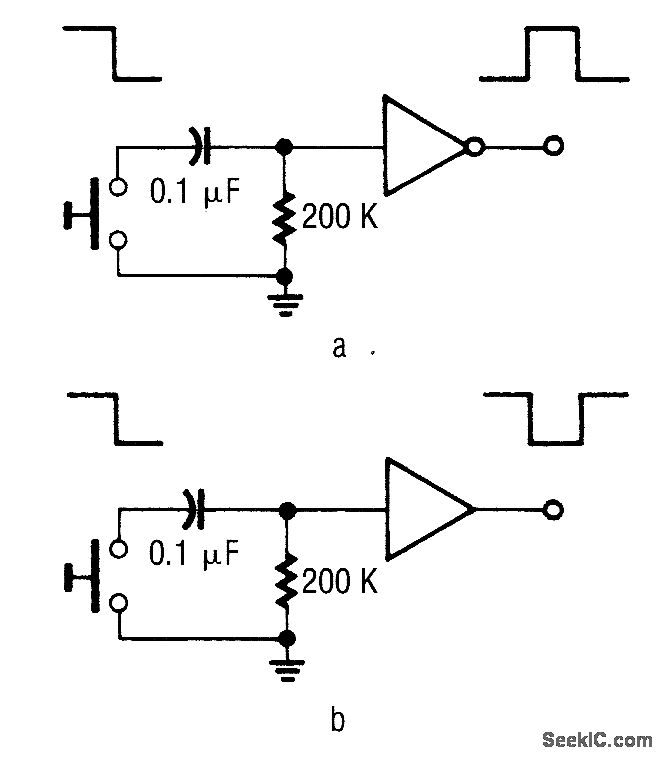

These circuits will cure problems caused by switch-contact bounce. The one shown in Fig.88-21A provides you a positive output pulse, and the one shown in Fig. 88-21B provides you a neg-ative output pulse.
