SWITCHING_DIODE_TESTER

Published:2009/7/23 21:46:00 Author:Jessie | From:SeekIC

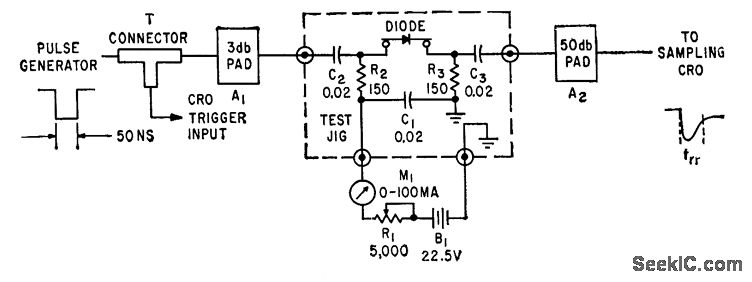

Used in checking performance of computer diodes when handling steep-edged, short-duration pulses. Negative input pulse cuts off diode current, and sampling oscilloscope with 1,000-Mc band-width permits study of diode recovery limes down to 500 picosec.-W. S. Eckess and P. G. Docket, Measurement of Diode Switching Characteristics, Electronics, 33:15, p 59-61.
