SWITCHING_CLICK_SUPPRESSOR

Published:2009/6/29 23:39:00 Author:May | From:SeekIC

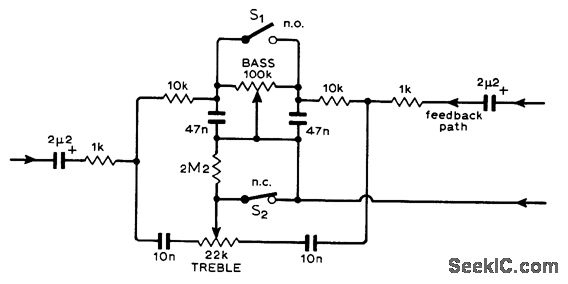

Correction network shown can be inserted in audio channel of mixing console without producing transients or level changes. Although Baxandall network is shown, switching technique is applicable to other filters. With S1 normally open and S2 normally closed, circuit operation is normal. If switch positions are simultaneously reversed, response remains flat regardless of positions of bass and treble pots, centerfrequency gain remains unchanged, and phase shift is unchanged. There is then no transient interruption of AF signals. Switching clicks cannot occur because there is no direct current in the network.-J. S. Wilson, Click-Free Switch-ing forAudio Filters, Wireless World, Jan. 1975, p12.
