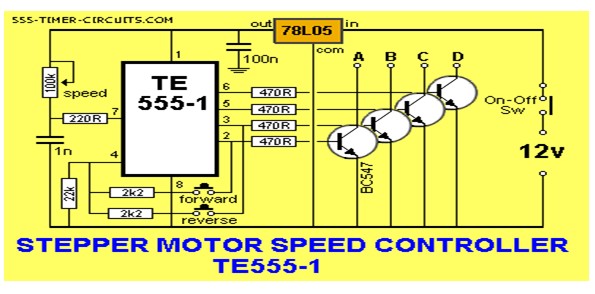

STEPPER MOTOR CONTROLLER TE555-1 Circuit

Published:2013/3/5 20:50:00 Author:Ecco | Keyword: STEPPER MOTOR , CONTROLLER | From:SeekIC

The direction of rotation is determined by the FORWARD and REVERSE switches and the motor does not take any current when a switch is not pressed.
