SPEED_CONTROL_SWITCH

Published:2009/6/23 22:15:00 Author:Jessie | From:SeekIC

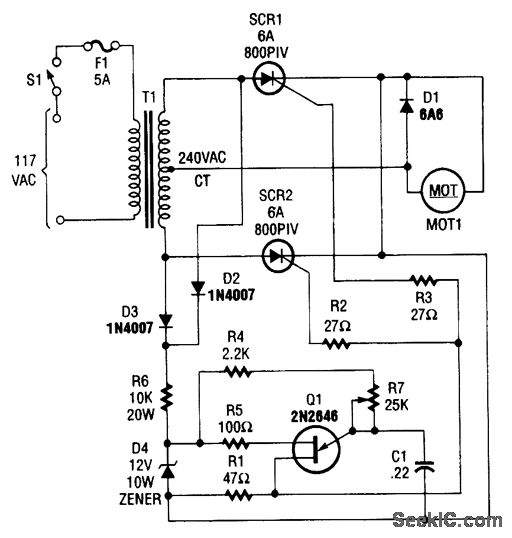

The speed-control switch offers reasonably good control and stability to both ends of its operating range. This circuit uses two SCR devices in a full-wave configuration to control the dc power to a motor. A center-tapped transformer is used to supply the SCRs.
