SINGLE_ENDED_LINE_DRIVER

Published:2009/7/15 4:10:00 Author:Jessie | From:SeekIC

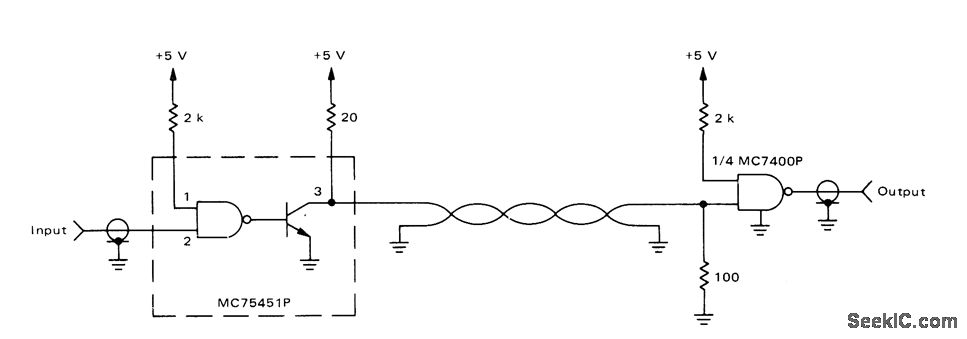

Supplies 4.2-V input pulse to twisted-pair transmission line for point-to-point system. Requires only single +5 V supply.-T. Hopkins, Line Driver and Receiver Considerations, Motorola, Phoenix, AZ, 1978, AN-708A, p14
